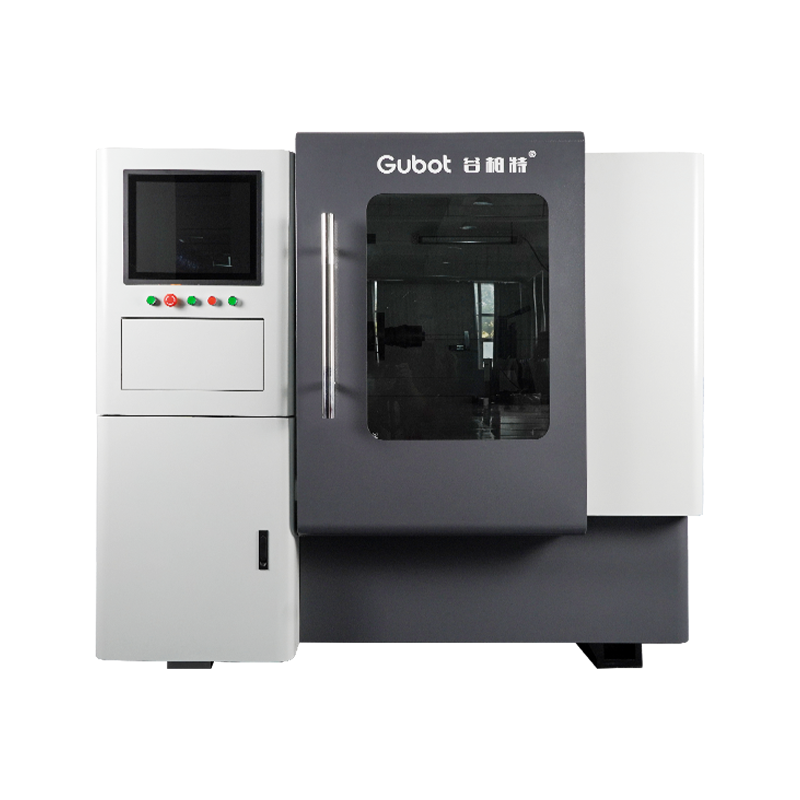

Cnc Wheel Diamond Cut Machine LSB200
The modular design offers flexible configuration, while automatic lubrication and a rigid spindle ensure stable, efficient performance. The system provides lifetime upgrades and an easy-to-use interface. Features include curve self-optimization, infrared precision measurement, remote support, and program storage. Identical rims require no rescanning. Self-diagnosis improves maintenance, and curved-edge safety design prevents accidental impact.
Modular design to meet different selection requirements.
Automatic lubrication system to ensure sufficient lubrication. High-rigidity spindle, high rotational speed, and more convenient maintenance.
The system software is upgraded and iterated for free throughout its lifetime. The equipment supports intelligent remote technical operation training.
User-friendly operation interface, intelligent operating system, easy to learn. It can be mastered in half an hour even without a foundation.
The equipment has the ability of self-optimization of curves. According to the collected feedback, the processing parameters are continuously optimized.
Adopt infrared displacement sensors for high-precision measurement to ensure the accuracy of diamond cutting processing.
Support remote assistance, wireless Internet access, program storage. For wheels of the same model, there is no need for secondary scanning and they can be processed directly.
The equipment has a self-diagnosis and alarm function for faults, enabling it to detect and solve problems in a timely manner.
The design of the curved surface edges and corners is more stable and smooth. The curved surface edges and corners enhance safety and prevent people from accidentally hitting the machine.
Parameter Specification
| Items | Unit | Technical parameters |
| Software system | / | Tianji4.0Max version |
| Chamfered form | / | Semi-automatic |
| Maximum rotational diameter | mm | 680 |
| Maximum processing hub size | inch | 24 |
| Working voltage | V | 220VAC/380VAC/ Three-phase 220VAC,50/60HZ |
| Main motor power | KW | 4 |
| Spindle speed | r/min | 0-3000 |
| Cutting feed rate | mm/min | 0.1-1800. |
| X-axis movement speed | mm/min | 10000 |
| X-axis travel | mm | 410 |
| Y-axis movement speed | mm/min | 18000 |
| Y-axis travel | mm | 590 |
| Knife shank size | mm | 25 * 25 |
| Width of the X-axis guide rail | mm | 28 |
| Length of the X-axis guide rail | mm | 760 |
| Y-axis guide rail width | mm | 48 |
| Y-axis guide rail length | mm | 830 |
| Machine cutting accuracy | mm | 0.01 |
| Machine size | mm | 1850 * 1250 * 1720 |
| Net weight | KG | 970 |
| Detection type | / | Laser |
| Lubrication system | / | Automatic lubrication |
| Wheel holder | / | Central axis |
| Motor type | / | Servo motor |
